· product description

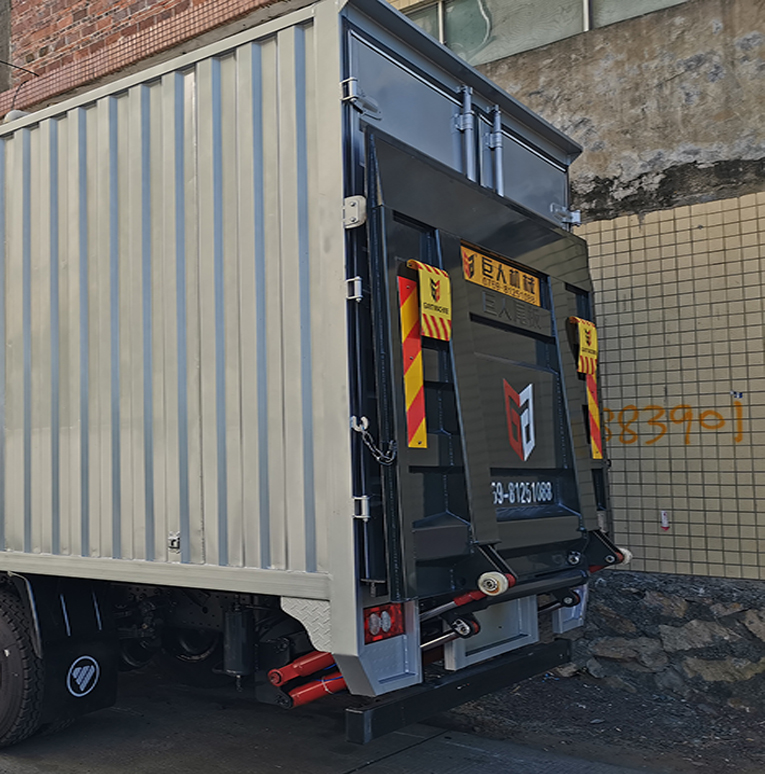

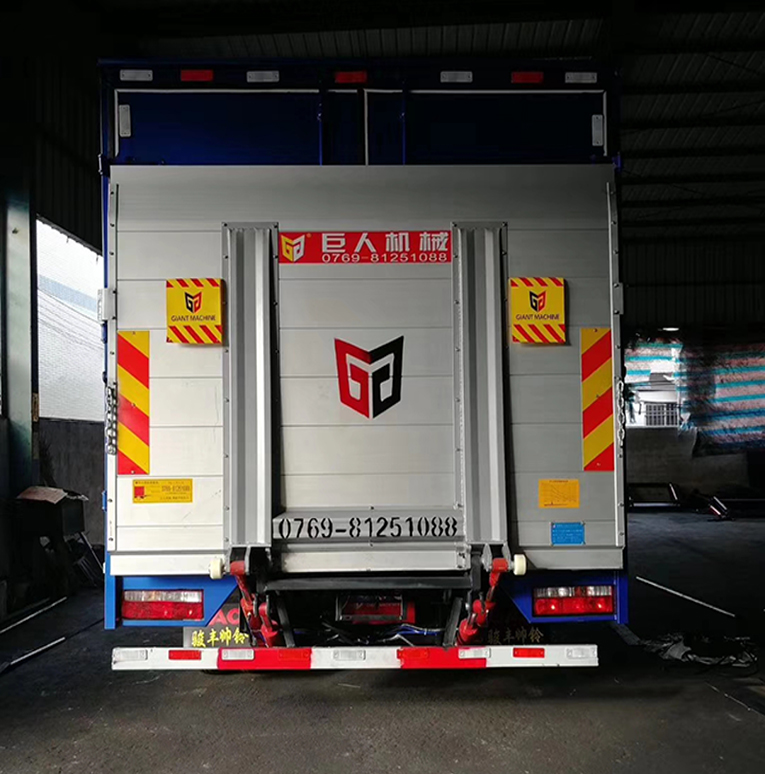

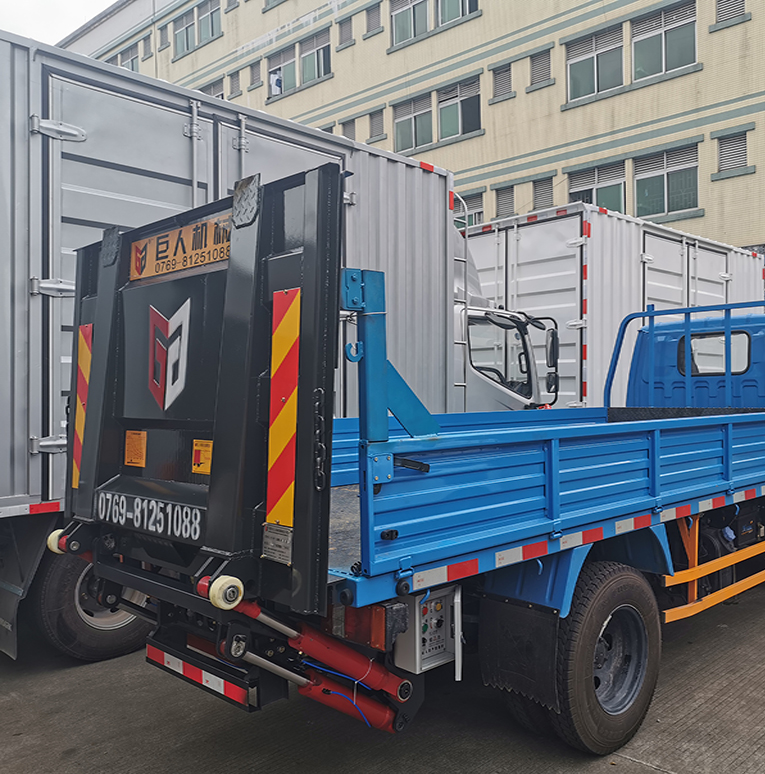

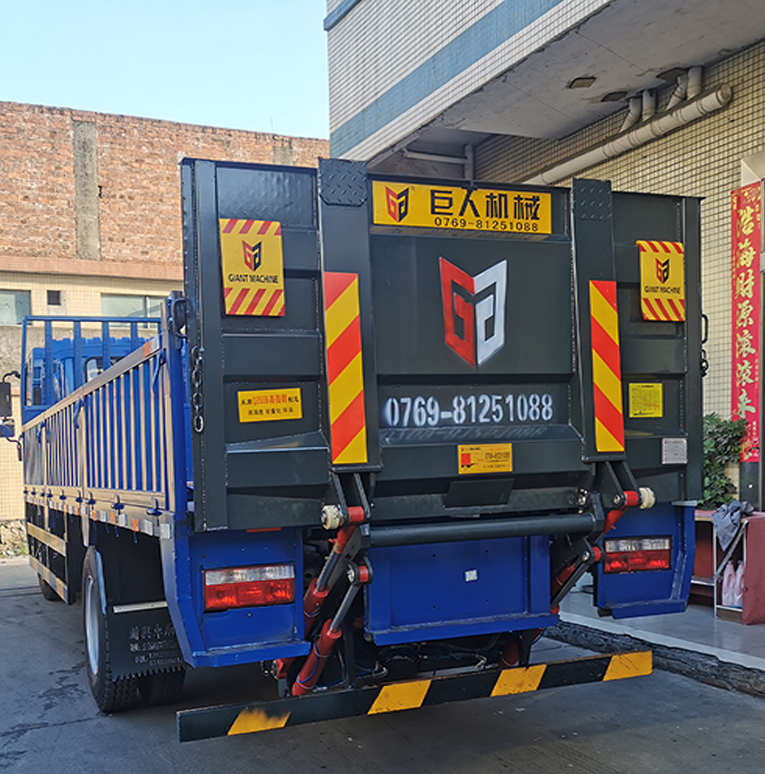

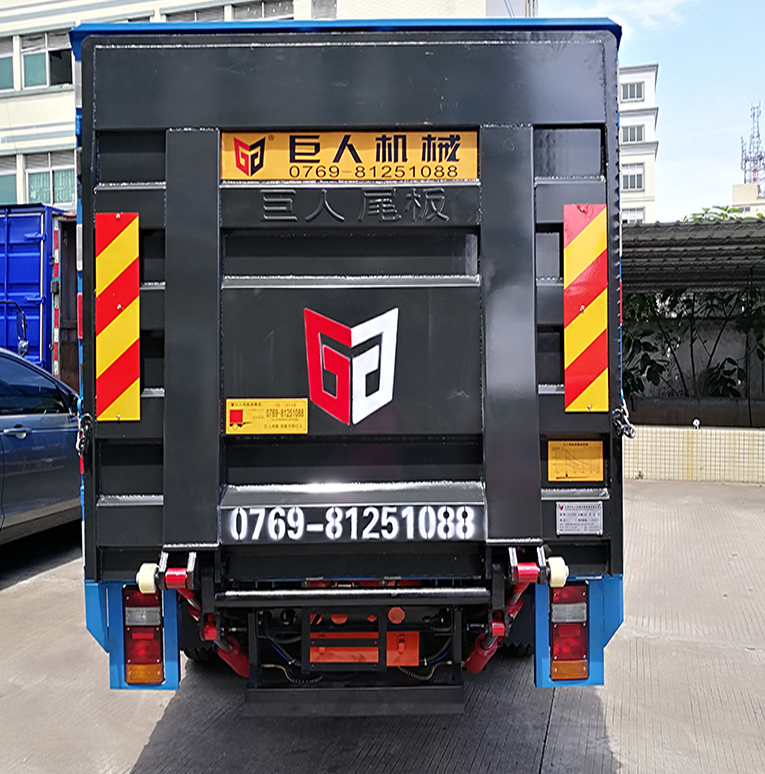

1. The giant lifting plate is a five-cylinder automatic balancing system product. The hydraulic system has an intelligent storage and memory function for relative positions, and the operation is more balanced and safe.
2. Easy to operate, no need to start the car engine, powered by on-board battery, environmental protection and energy saving.
3. Easy loading and unloading, one person can complete the loading and unloading of all goods, saving a lot of labor costs.
4. The main core accessories such as giant lifting tail plate hydraulic oil pump, DC motor, solenoid valve, hydraulic seal are all imported from foreign brands, with quality assurance, excellent performance, and almost zero failure rate.
5. The Giant series products are complete, suitable for the assembly of various car models, and special models can also be customized according to the actual needs of customers.
· Technical Parameters
| Technical Parameters | Model specification | |||
| JR-1000A | JR-1500A | JR-2000A | JR-2500A | |
| Panel specifications | 1700x1600 | 1800x1700 | 2200x1800 | 2300x1800 |
| 1800x1600 | 1900x1800 | 2300x1800 | 2400x1800 | |
| 1800x1700 | 2300x1800 | 2500x1800 | 2500x1800 | |
| 1900x1700 | Can be customized according to the width of the carriage | |||
| Rated load (kg) | 1000 | 1500 | 2000 | 2500 |
| Own weight (kg) | 400 | 450 | 550 | 650 |
| Motor power (kw) | 1.6 | 2.0/2.2/2.5 | 2.5/2.8 | 3.0 |
| Motor power | DC12V-24V/80AH-160AH | |||
| Support arm length | 600/750/800 | 750/800/900/950 | 900/950 | 900/1000 |
| Inner width of bracket | 900 | 900/1010 | 900/1010 | 900/1010 |
| Applicable floor height | 700-1550 | |||
| Lifting speed | 78mm/s | |||
| Choose oil | 46 or 68# anti-wear hydraulic oil | |||
| Working inclination | 5° to 8° | |||
Tail plate installation, installation of tail plate, truck tail plate
